Profiled Hlau Panels Corrugated Vaj Huam Sib Luag Phab Ntsa

Profiled hlau panels system muaj lub ntsej muag sab hauv, purlins, sab nrauv ntsib thiab thermal rwb thaiv tsev. Vim nws cov duab zoo nkauj thiab siv tau yooj yim, nws tau siv dav hauv cov tsev lag luam, xws li factories, warehouses thiab lwm yam phab ntsa kho kom zoo nkauj. Nws yog lub teeb thiab yooj yim rau nruab, txo cov sij hawm tsim kho thiab cov nqi zog. Txhawm rau kom ua tiav cov txiaj ntsig zoo rwb thaiv tsev thiab ua tau raws li cov qauv tsim vaj tsev sib txawv thiab cov kev xav zoo nkauj, Duowei muab cov phab ntsa hlau profiled nrog cov corrugations sib txawv, crests, thiab dav dav rau cov neeg siv khoom. Cov neeg siv khoom tuaj yeem xaiv qhov tsim nyog profile raws li cov yam ntxwv ntawm lub tsev kom ntseeg tau cov qauv kev nyab xeeb thiab kav ntev.

Paub meej ntawm profiled hlau panels

Profile	Tshooj	Siv dav dav (mm)	Thickness (hli)
TSI 1000		1000	0.5
			0.6
			0.7
			0.8
TIAB SA 840		840	0.5
			0.6
			0.7
			0.8

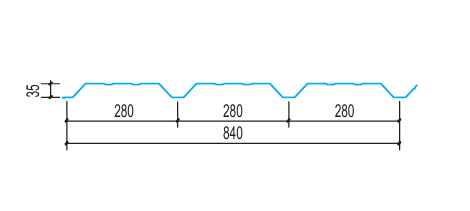

OTW1000 thiab OTW840 yog dav-rib panels, ua kom dav kab noj hniav ntawm corrugated daim hlau thiab purlins, uas tuaj yeem txo qhov compression ntawm rwb thaiv tsev, txhim khu cov rwb thaiv tsev txuas ntxiv thiab txo cov txuas hniav txias. Qhov txo qis rov ua haujlwm ntawm rwb thaiv tsev pab txhim kho qhov chaw tiaj tus ntawm cov panels. Lawv tau siv dav hauv cov tsev lag luam, xws li kev cob qhia, warehouses thiab lwm yam.
OTN840 (25)		840	0.5
			0.6
			0.7
			0.8
OTN840 (35)		840	0.5
			0.6
			0.8
TSO 950		950	0.5
			0.6
			0.7
			0.8
TSI 820		820	0.4

			0.5
			0.6
			0.7
			0.8
TSO 750		750	0.5
			0.6
			0.7
			0.8
			1.0
OTN series profiled hlau panels yog nqaim-rib, uas tsim kom muaj kev hloov maj mam, ua kom zoo dua qub, thiab niaj hnub zoo nkauj.
TIAB SA 780		780	0.5
			0.6
			0.7
			0.8
SIB 810		810	0.5
			0.6
			0.7
			0.8
Profiled hlau panels yog nteg nyob rau hauv ib tug nkhaus thiab horizontally, tsim dynamic tsev facades. Lub rwb thaiv tsev yog muab tso rau nruab nrab ntawm lub hauv paus thiab theem nrab thav duab los xyuas kom meej lub rwb thaiv tsev txuas ntxiv thiab flatness ntawm phab ntsa nto mus rau qhov loj tshaj plaws. Nws yog tsim rau cov tsev lag luam, cov tsev tshwj xeeb thiab cov qauv steel loj.
CTN 360/480		360/480	0.5-0.8 xim-coated phaj
			0.7-1.2 Al-Mg-Mn
Kab rov tav sib dhos yam tsis muaj cov ntsia hlau. Cov rwb thaiv tsev yog muab tso rau hauv pem hauv ntej ntawm thawj thiab theem nrab thav ntawv, thiab cov ntaub thaiv npog zais cia tseem muab tso rau ntawm lub tiaj tus thib ob thav duab kom zoo xyuas kom meej qhov flatness ntawm phab ntsa.

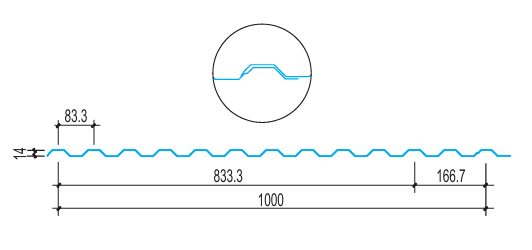

NCB 833/1000		1000	0.4
			0.5
NCV 900		900	0.4
			0.5
			0.6
			0.7
NCO 880		880	0.5
			0.6
			0.7
			0.8
NCB series yog siv los ua sab hauv ntsib hauv profiled hlau panels system.

Kev siv cov profiled hlau panels

Kev siv OTW series

Kev siv OTN series

Kev siv OCW series

Kev siv CTN series

CTN480
